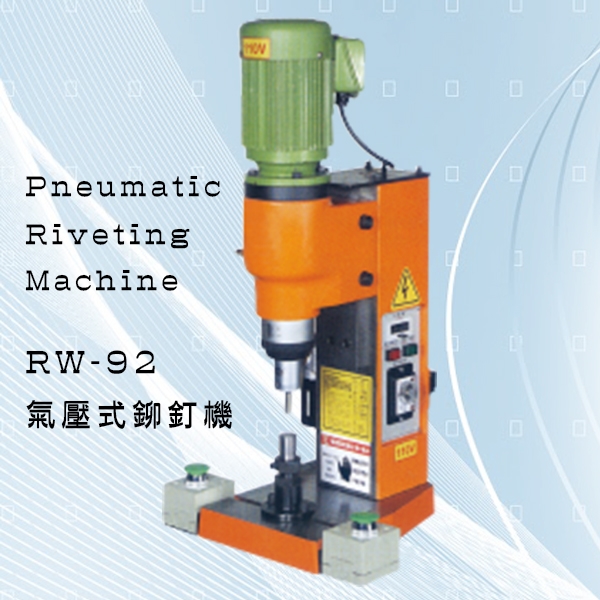

型號 : RW-92
品牌 : 正昌
● 設計輕巧,不佔空間,搬運容易。● 精密度高,最適合微小零件鉚合用。
● 耗氣量少,省能源。
● 單相電壓,任何場所皆可使用。
● 最大鉚合能力,實心釘達 φ4mm。
*建議使用在 φ3mm 以下 , 最具經濟效益*
喉深:Throat depth/125 mm
馬達:Motor/1/4 HP 1Phase
壓力:Pressure/2~7 Kgf/Cm2
最大出力:Max output/370 Kgf
夾頭行程:Riveting capacity/25~40 mm
沖頭至台面距離:Distance between punch and table/30~135 mm
工作台尺寸:Working table (LxW)/225 x 190 mm
機械尺寸(LxWxH): Machine dimension (LxWxH)/9 x 69 x 76 cm
淨重:Net weight/60 Kgs
