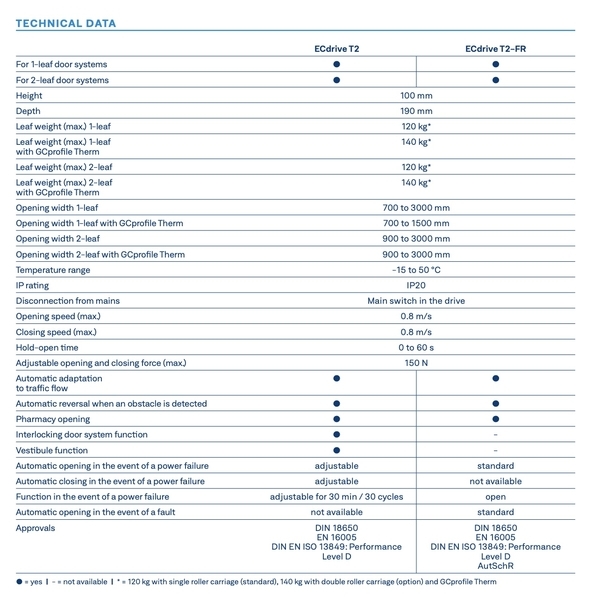

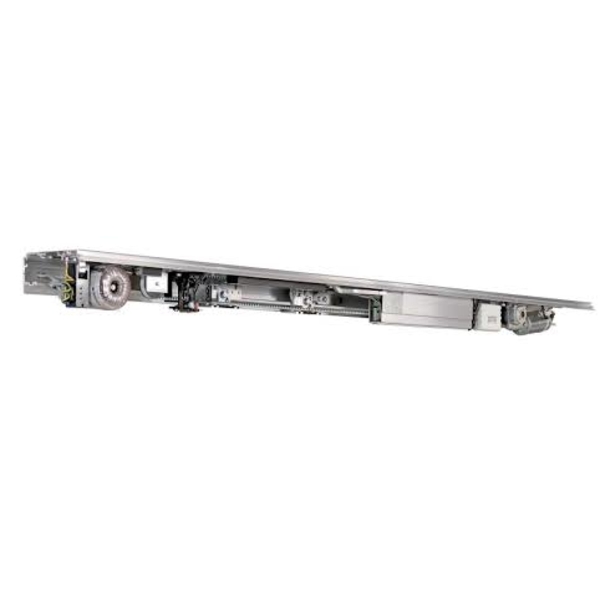

ECdrive T2
For 1-leaf door systems Yes
For 2-leaf door systems Yes
For 4-leaf door systems No
ISO glass fine-framed Yes
MONO glass fine-framed Yes
ESG clamping profile Yes
All-glass system (GGS) No
Integrated all-glass system (IGG) No
Framed leaf (on site) Yes
Wooden leaf (on site) Yes
Fire protection leaf T30 (Hörmann) No
Height 100 mm
Depth 190 mm
Leaf weight (max.) 120 kg
Leaf weight (max.) 1-leaf with GCprofile Therm and double roller carriage 140 kg
Leaf weight (max.) 2-leaf 120 kg
Leaf weight (max.) 2-leaf with GCprofile Therm and double roller carriage 140 kg
Opening width 1-leaf 700 mm - 3000 mm
Opening width 1-leaf with GCprofile Therm 1500 mm
Opening width 2-leaf 900 mm - 3000 mm
Opening width 2-leaf with GCprofile Therm 3000 mm
Operating temperature -15 °C - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Approvals DIN 18650, EN 16005, DIN EN ISO 13849: Performance Level D
