∙ Start current 0.9A
Standard current 0.3A

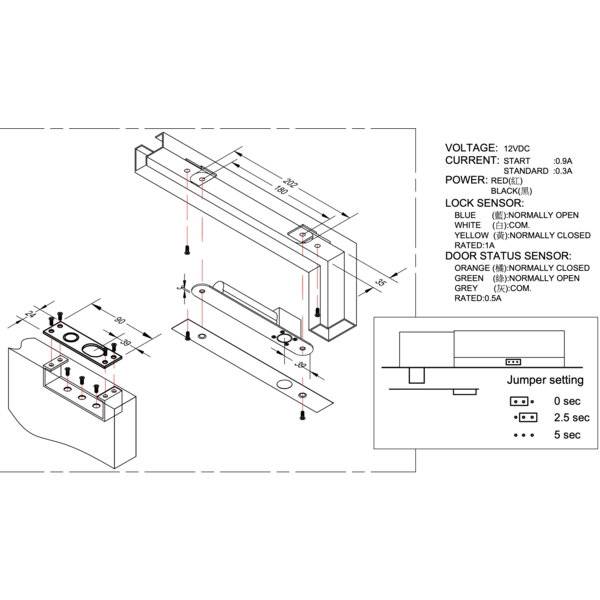

∙ Body size : 200 X 34 X 43 mm
Face plate : 200 X 34 X 3 mm
Cover plate : 210 X 42 X 0.8 mm
Strike plate : 90 X 24 X 2 mm
∙ Bolt : 15.5 DIA, stainless steel 17mm throw
∙ Lock sensor, Door sensor
∙ Delay time ( 0 ~ 5 sec.)
